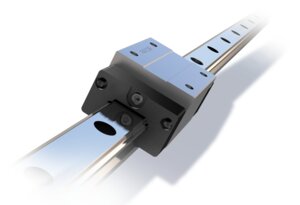

Linear guideways - Balls on the chain
Linear guideways with four rows per carriage (in X-arrangement and 45° contact angle) can handle forces from all main directions. The X-arrangement of the raceway enables easy preload installation. Moreover, the system is less sensitive for misalignment. Linear guideways of this version are usually used for adjusting and loading equipment as well as traversing units in production machines or for robot applications.
An integrated lubrication system extend the service intervals and made the linear guideways extremely low-maintenance. Moreover, linear guideways of Rodriguez are available with ball cage. The carriages can also be delivered in different versions.
Upon request, Rodriguez linear guideways are available with a metal cover strip for protection against contamination. An external lubricant tank is available for further extension of a maintenance interval.
For particularly compact designs, Rodriguez can also provide the linear guideways in the miniature versions.
Advantages of Rodriguez linear guideways
- Low-maintenance
- No additional lubrication system required
- Extension of the maintenance intervals
- Lubricant saving
- Clean and media resistant
- Also available in a miniature version
- With a metal coverstripe
- Available with an external lubricant tank
Other series of the linear guideways
BRH-A/-AL Standard with flange
BRH-B/-BL Standard without flange
BRS-B/-BS Compact
LMBM Miniature
BRS-A Compact, with flange
BCH-A Standard with ball-cage, with flange
BCH-B Standard with ball-cage, without flange
BCS-B Compact with ball-cage, without flange
HK Manual clamp elements
Linear rollerguides offer increased dynamic and static loadratings due to their increased contact area of the cylindrial rolling elements. This leads to a high rigidity and supports machinetool-applications etc.
MSR…E/LE Roller Linear guideway, Standard with flange
MSR…S/LS Roller Linear guideway, Standard without flange
KRFT 27
KRF 28
KRFU
Cross roller guides from Rodriguez are characterized by an exceptionally low-friction running, an extremely compact design and the highest degree of precision. These properties make this type of enclosed guide rail especially suited for use in the medical, biotechnology and semiconductor technology as well as in the optical industry.
The cross roller guides can be installed either horizontally or vertically depending on the application. The parallel arrangement of two pairs of rails allows the guiding of a linear slide. This opens up numerous new solution possibilities.
Advantages of Rodriguez cross roller guides
- Compact design
- Exceptional low-friction running
- High rigidity
- Exceptional precision
- Single and multi-configuration
Miniature linear guideways are especially developed for the use in smallest cross sections.
Because of their precision and compactness, they achieve the maximum productivity.
Rodriguez offers the standard miniature linear guideways with small and wide rails in stainless steel.
Advantages of Rodriguez miniature versions
- High stiffness
- Compact
- Smooth-running
- Ready-to-install
- High precision
- High dynamic
The miniature linear guideways are perfect suitable for all applications where fast and repeatable positioning is required. These are for example clean room applications or medicine and semiconductor technique.
