CAD-Data - Shortened design times

The CAD library of all Rodriguez products helps designers with their work. The data download contributes to the acceleration of the design process.

The CADENAS component libraries are also constantly being supplemented with the latest CAD data from Rodriguez.

All CAD data from the two libraries is available for free download. The native data and the standard export formats are available for all popular CAD systems.

CAD Download

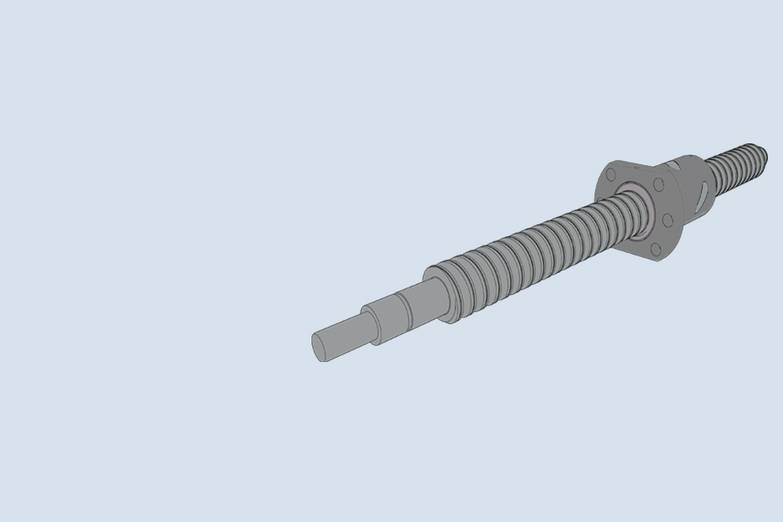

We are pleased to send you CAD-files for the products of our catalogue „Ball- and Leadscrews“ upon request to jschulden@rodriguez.de.
